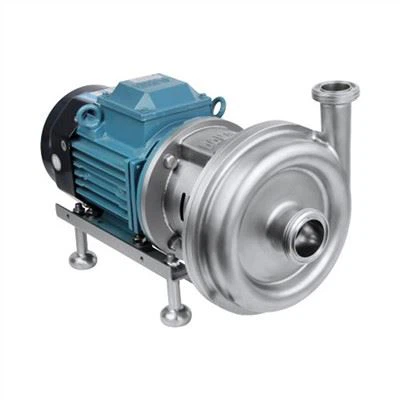

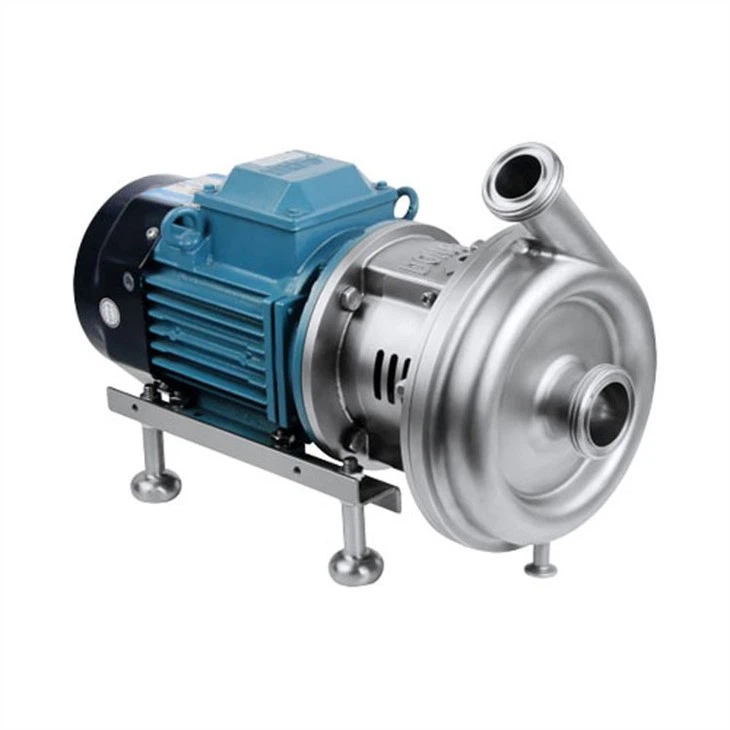

DONJOY KLX dej centrifugal twj tso kua mis yog qhib impeller hom centrifugal twj tso kua mis, piv nrog LX series, nws yog ntau yig thiab kev sib tw. Nws tau hloov kho los ntawm KS centrifugal twj tso kua mis. Nws tsis tsuas yog optimize lub sab hauv, xws li impeller tsim, tuag lub kaum sab xis kho, mechanical seal siab sib npaug tsim thiab cov neeg kho tshuab foob yog kiag li nyob rau hauv lub flushing cheeb tsam, tab sis kuj nws optimize lwm yam huv si ntawm lub twj tso kua mis. Nws yog qhov tsim nyog rau kev kho dej, kuj tseem siv tau rau kev lag luam dej haus thiab tshuaj, xws li mis nyuj, cawv, cawv, dej haus, thiab lwm yam.
Technical Data:
● Tus nqi ntws: 1-140m³ / h
● Max taub hau: 70m
● Inlet/out loj: 3/4"-3"
● Khoom siv: SS304 / SS316L
● Mechanical foob: ib zaug / ob npaug SIC / C / EPDM, SIC / C / FKM, SIC / C / HNBR, SIC / SIC / EPDM, SIC / SIC / FKM, SIC / SIC / HNBR, TC / TC / EPDM, TC /TC/FKM, TC/TC/HNBR
● Kev sib txuas: clamp, xov, txiv ntseej, flange
● Txuj: 3A, DIN, SMS, ISO/IDF, RJT
● Kub: -20-140 degree
● Kev kho deg: Ra Tsawg dua lossis sib npaug rau {{0}}.6μm; Ra Tsawg dua lossis sib npaug li 0.4μm
● Khoom siv: 100 feem pua stainless hlau, nruab nrab hu rau 316L
● Daim ntawv pov thawj: 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No. 705201402401-00
Peb Qhov Kev Pabcuam
● Lub sij hawm them nyiaj: T / T, los ntawm alibaba (credit card muaj), L / C
● Pob: Plywood rooj plaub lossis customized (raws li kev thov ntawm cov neeg siv khoom)
● Lub sij hawm xa tuaj: ib txwm nyob ib ncig ntawm 20 hnub
● Kev Thauj Khoom: los ntawm huab cua (DHL / TNT / UPS / FedEx); ntawm hiav txwv
Download tau
● Qauv Xaiv Rooj
● Kev kos duab
● Performance Curve
● Phau Ntawv Qhia Kev Ua Haujlwm
