Kev piav qhia

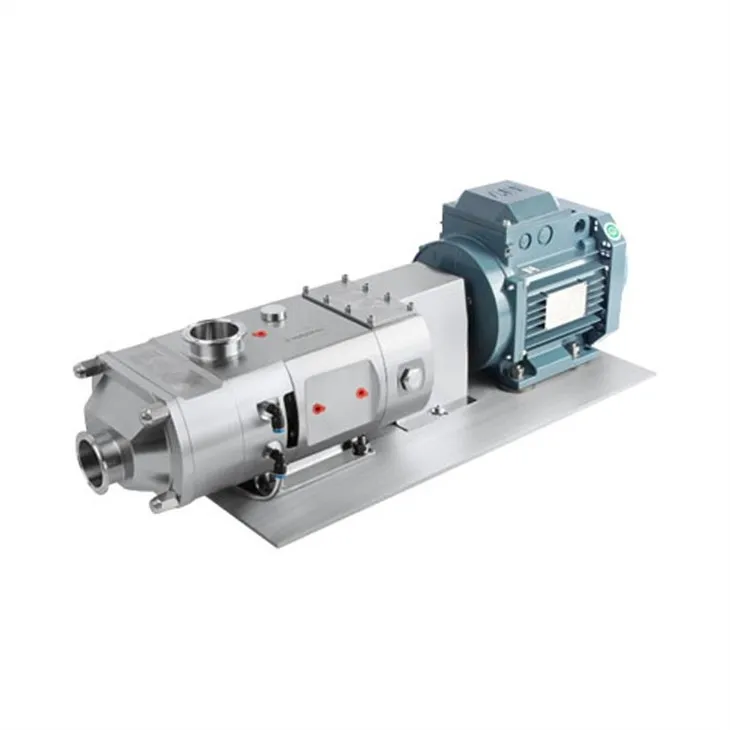

Lub Ntsia Hlau Pump nrog Servo Tsav yog tsim los rau cov kua nplaum, tshuaj, tshuaj thiab lwm yam kev lag luam siab viscosity. Nws muaj kev ua haujlwm ntawm kev ntsuas qhov tseeb lossis sau cov ntsuas ntsuas, thiab tsim nyog rau kev xa cov khoom nruab nrab thiab qis pulsation kis tau tus mob. Vim tias nws cov khoom tseem ceeb yog cov hlau tsis zoo, nws muaj kev ua haujlwm ruaj khov thiab tuaj yeem tiv thaiv corrosion thiab xeb thiab lwm yam. Tsis tas li ntawd, nws tau nruab nrog lub clamping los ua ke kom nruj cov threaded spindle thiab nws servo lub cev muaj zog yog tsim rau kev tsav ncaj qha ntawm threaded. txiv ntseej, uas tuaj yeem ntsia tau rau hauv txhua qhov tsim nyog thiab ua tiav kev siv zoo.
Nta
Screw Pump nrog Servo Tsav yog dav siv nyob rau hauv ntau yam lag luam xws li tshuaj ua, refineries, thiab roj thiab roj ntau lawm. Nws muaj kev ua haujlwm ruaj khov heev thiab muaj kev pab zoo dua ntxiv nrog rau kev sib kis ceev ceev piv rau lwm cov twj tso kua mis. Ntxiv mus, nws lub cev muaj zog servo tuaj yeem tso cai sib txawv ntawm qhov sib kis thiab yuav tsis ua haujlwm yooj yim. Lub cev muaj zog ua haujlwm ntawm qhov kub qis dua thiab tuaj yeem zam qhov tshwm sim zoo li burnout.
Technical Data:
● Tus nqi ntws: 0.54-47.4m³ / h
● Max siab: 15 bar
● Kev nrawm nrawm: 100-1450 RPM
● Inlet/out loj: 1"-4"
● Screw qhov chaw: 18-48mm
● Max particles: 23mm
● Mechanical foob: ib zaug / ob npaug SIC / C / EPDM, SIC / C / FKM, SIC / C / HNBR, SIC / SIC / EPDM, SIC / SIC / FKM, SIC / SIC / HNBR, TC / TC / EPDM, TC /TC/FKM, TC/TC/HNBR
● Kev sib txuas: clamp, xov, txiv ntseej, vuam, flange, flange hopper
● Txuj: 3A, DIN, SMS, ISO/IDF, RJT
● Ua haujlwm kub: -40 degree txog 150 degree
● Kev kho saum npoo: Ra Tsawg dua lossis sib npaug rau {{0}}.6μm; EP=Ra0.4μm
● Khoom siv: 100% stainless hlau, nruab nrab hu rau 316L
● Daim ntawv pov thawj: 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No. 705201402401-00
Peb Qhov Kev Pabcuam
● Lub sijhawm them nyiaj: T / T, los ntawm alibaba (credit card muaj), L / C
● Pob: Plywood rooj plaub lossis customized (raws li kev thov ntawm cov neeg siv khoom)
● Lub sij hawm xa tuaj: ib txwm nyob ib ncig ntawm 20 hnub
● Kev Thauj Khoom: los ntawm huab cua (DHL / TNT / UPS / FedEx); ntawm hiav txwv
